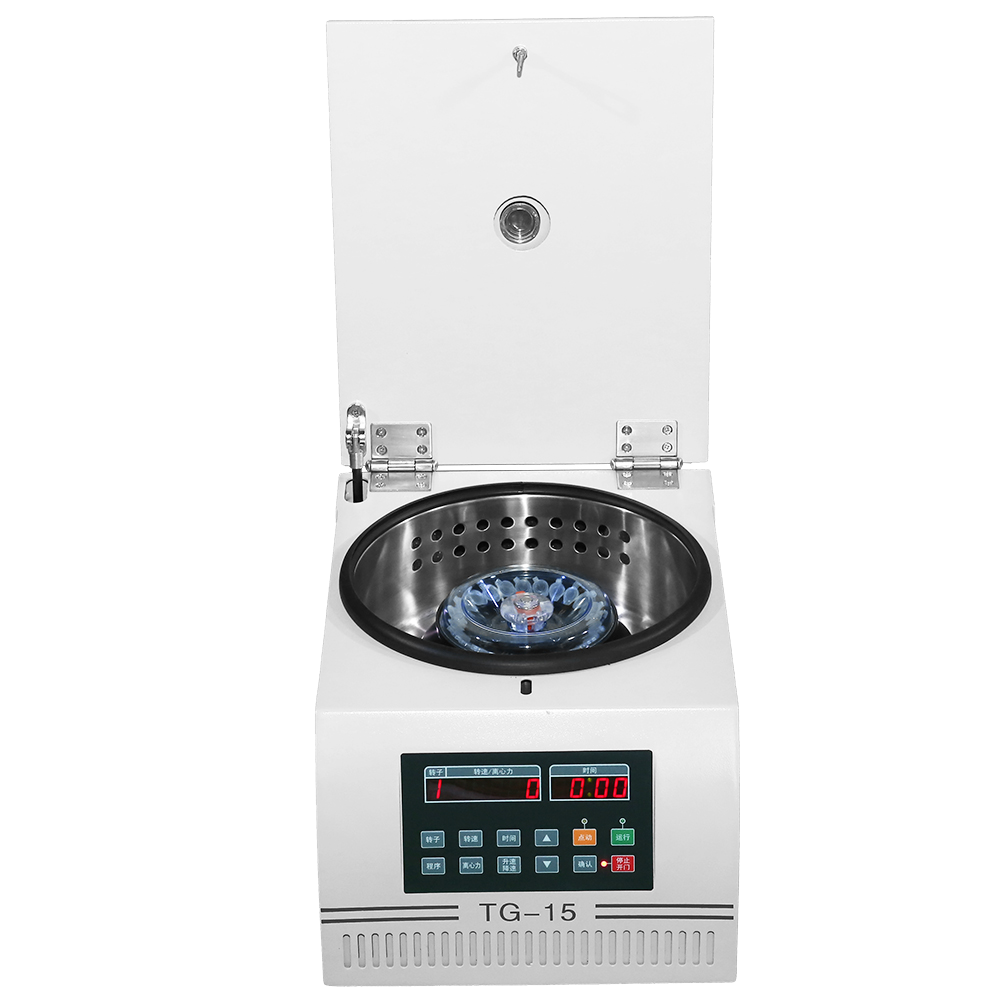

Benchtop high speed micro capacity centrifuge machine TG-15

TG-15 Benchtop high speed micro capacity centrifuge machine has three fixed angle head rotors: 12*5ml,24*1.5ml/2.2ml and 32*0.2ml(or 4 pcr strips). It adopts variable frequency motor and can store 12 programs.

Products Details

Max Speed 15000rpm Motor Variable frequency motor
Max RCF 21630Xg Display LED
Max Capacity 12*5ml Electronic lid lock Yes
Speed Accuracy ±20rpm Can change parameters under operation Yes
Timer range 1min-99min59s/inching RCF can be set directly Yes
Noise 58dB(A) Can store programs 12 programs
Power Supply AC 220V 50HZ 10A Adjustable acceleration and deceleration rate 10 levels
Dimension 365*300*260mm (L*W*H) Electronic lid lock Yes
Weight 18kg Housing material Steel
Power 500W Chamber material Stainless steel
User-friendly functions: • LED Digital display. • Microprocessor control. • RCF can be set directly without RPM/RCF conversion. • Can set and store 12 programs. • 10 levels acceleration and deceleration rate. • Timer range:1min-99min59s/inching. • Can change parameters under operation. • Unique heat dissipation system,the temperature rising of chamber ≤12℃,after 20minutes continuous work.Ensure Safety: • Electronic door lock,controlled by independent motor. • Emergency lid-lock release • Lid can only be opened when completely stop running. • Port in the lid for calibration and operation checking. • Hydraulic rods support the lid.   Good components: • Motor: Variable frequency motor---stable running,maintenance free,long life. • Housing: Thick and strong steel • Chamber: Food grade 304 stainless steel--- anticorrosion and easy to clean  Rotor: Aluminium alloy fixed angle rotor.
